M-Audio Oxygen Pro Template [FL Studio]

Version 3.1 (Released: Aug 21, 2025)

Version 3.1 was reworked for easier code management & helpful workflow improvements, plus.. support for Hammer Pro 88!

• NEW: Support added for Hammer 88 Pro.
• Added: Can now switch between browser tabs with Browser & Tab drum pad.
• Added: If 'browserCloseFolder' set to 1 (gratWorkflow), auto-close browser folder for faster workflow.
• Added: BACK button (beside PUSH TO ENTER Knob) can now escape most windows.
• Improved: Oxygen Pro Preset Template - Piano Roll Drum Pad color set RED.
• Improved: Set the last 8 drum pads to white when pressing them for consistency.
• Improved: Browser - Drum pad navigation less confusing [now operates in a square]
  • Add Sound to Channel Rack: is now Drum Pad ENTER
  • Trigger Sound: is now Drum Pad FORWARD (to use stronger middle finger vs. ring finger)
  • Close Folder: is Drum Pad BACK (with ability to auto-close with 'browserCloseFolder')
• Improved: Renamed premium oxygen pro midi script to '1-GRAT-OXYGENPRO-PREMIUM' for easy access at top of script selector + not having to keep changing version naming on updates
• Improved: When focused on effect plugin, ENTER drum pad disables that mixer insert's plugins (A/B comparison).
• Improved: Reduced MIDI_REPEAT/MIDI_INERTIA for more control & response.
• Improved: 'makeKnobWork' of gratWorkflow is still BETA, but more features like opening channel rack plugin window, navigating presets, transport 1 bar forward/back in playlist, muting mixer track.
• Improved: Allow ENTER drum pad to full screen piano roll.
• Improved: Now shows Next/Previous Pattern when Switching Patterns off Pads.
• Improved: Add more hint panel messages describing what pads do.
• Fixed: FL Studio Version 2024 added extra item in mixer right-click menu, breaking quick mixer preset feature.
• Fixed: Changed 'makeKnobWork' CC #'s to prevent conflict of other parameters on the controller.

Version 3.0.3:

Version 3.0.3 only tweaks the Oxygen Pro MINI.

• Improved: Made the faders right to left, rather from left to right. This is important so MINI users can follow along with the supported VSTs like bigger models can. MINI Users only have 8 faders compared to 9 of bigger models.

Version 3.0.2:

Version 3.0.2 improves FabFilter Pro-L 2 for better fine-tuning in mastering.

• Improved: FabFilter Pro-L 2 input volume can't go less than -1dB now. Since MASTER is -1dB, I like input volume 1dB minimum to match reduced volume. This ensures hands-on volume input can go no less than 1dB.
• Improved: Gave T-RackS 5 Classic Clipper output the ability for some positive output gain, and a little more reduction.

Version 3.0.1:

Version 3.0.1 improves T-RackS 5 Classic Clipper knobs for better fine-tuning in mastering.

• Improved: T-RackS 5 Classic Clipper input moved to last slider to be like other plugins
• Improved: T-RackS 5 Classic Clipper input and output knobs amounts reduced for better fine-tuning in mastering

Version 3.0:

Version 3.0 removes 'gratWorkflow' option, and allows you to customize your own setup by opening Premium MIDI Script and switching 0 to 1 and saving template @ top of file.

OXYGEN PRO IMPROVEMENTS:

• Added: Global Links .flmapping file for GratuiTous' plugin setup for hands-on mixing
• Added: Generators get "Store State" & "Flip State" like effect plugins
• Added: Mute Mixer Insert when focused on Mixer
• Added: Welcome message on Script Output Pop-up
• Improved: Hold UP/DOWN drum pad to navigate faster
• Removed: Close All Windows (Buggy in FL 21).. waiting if ALT + F12 comes to MIDI Scripting
• Removed: 'gratWorkflow' option in Premium MIDI Script in favor of custom user options
• BETA: Twist 'Push to Enter Knob' to navigate (also an alternative way to change presets!)

Version 2.1:

Watch Oxygen Pro v2.1 Video

Version 2.1 provides massive workflow improvements based off the drum pad layout with the option of enabling 'gratWorkflow' in the Premium MIDI Script ('gratWorkflow' is now removed in Version 3.0 in favor of your own custom options!)

OXYGEN PRO IMPROVEMENTS:

• Added: Drum Pad Layout Page
• Added: Oxygen Pro Template Changelog to Follow Updates
• Added: New Drum Pad Colors for Bank 1
• Added: Get GratuiTous' workflow by enabling gratWorkflow = 1 in PREMIUM MIDI SCRIPT (Note, this was removed in V3.0 - you can now customize your own workflow).

GLOBAL CHANGES:

• CLOSE ALL PLUGINS (if "gratWorkflow = 1" enabled).
• Focus FL Studio Browser
• Open Piano Roll
• Open FL Studio F10 MIDI Settings
• Save Project (Save As if project is not saved)
• Undo (undo previous actions.. like CTRL + SHIFT + Z)
• Redo (redo actions on browser history.. like CTRL + Z)

CHANNEL RACK:

• Dump to Score Log (Last 1 Minute of Play)
• Switch Patterns
• Mute Selected Sound

EFFECT PLUGINS (MIXING PLUGINS):

• Store in Spare State
• Flip with Spare State

MIXER WINDOW:

• Open Mixer Preset (Auto selects if gratWorkflow = 1.. Make sure to label preset as "1 - NAME" to select first preset to autoload.)
• Solo Mixer Insert
• Route Selected Channel Rack Sound to Selected Mixer Insert

FL STUDIO BROWSER:

• Navigate Sounds
• Trigger Sounds
• Send Sound to Channel Rack

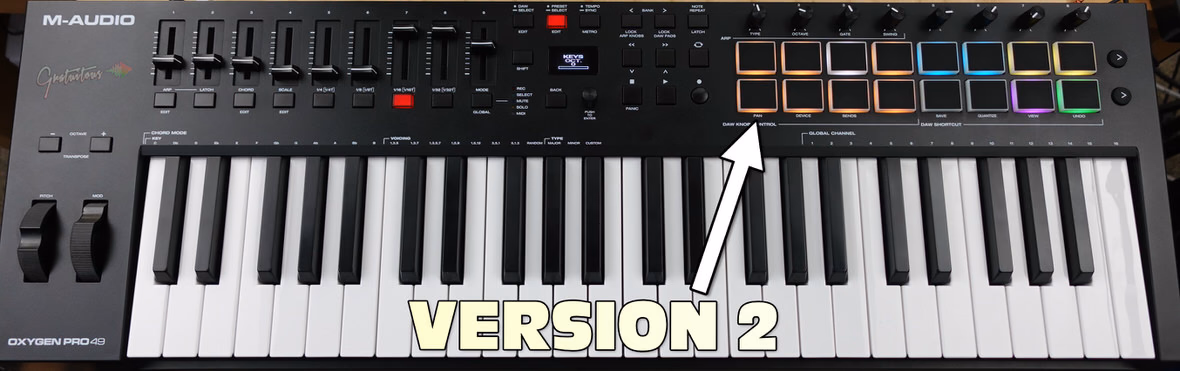

Version 2.0

Watch Oxygen Pro v2.0 Video

Version 2.0 was the first concept of this new [Drum Pad Workflow] FL Studio experience. Since I do not use drum pads while making melodies, I thought it'd be cool to navigate FL Studio based off the drum pads.. which has turned out to be a great idea!

• Added: NEW Oxygen Pro FL Studio Template [Drum Pad Layout].. Purchase now comes with 2 Versions.. [Version 1 is basic layout, Latest Version is Drum Pad Layout]
• Added: Premium MIDI Script for Oxygen Pro
• Added: Change VST Presets from Drum Pads (VSTi's that allow it)
• Added: Open/Close VSTs in Channel Rack
• Added: Open/Close VSTs in Mixer
• Added: Enable/Disable Mixer Insert Effects

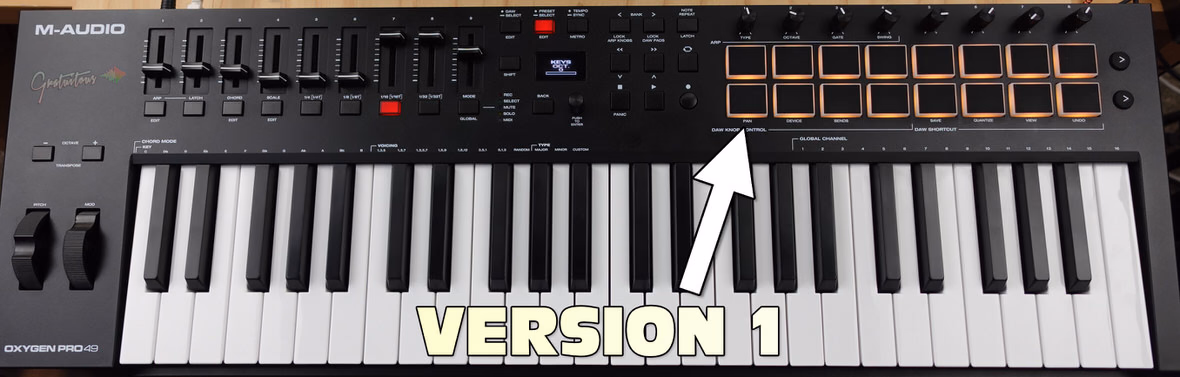

Version 1.0

Watch Oxygen Pro v1.0 Video

After the Oxygen Pro Setup in FL Studio was VERY confusing & buggy, I finally figured it out and created the Version 1.0 Oxygen Pro Template to simply import with no figuring out for you! V1 provides normal MIDI Keyboard operation in FL Studio!

• Added: Setup Knobs and Sliders Over the 4 Banks for 32 Knobs and 36 Sliders!
• Added: Sets Oxygen Pro to EXTERNAL to fix buggy transport buttons

FREE Version 3.1

• Added: Gave users access to the Push to Knob wheel for basic navigation, like selecting plugin presets, opening already existing plugins, and muting a mixer track. (Must set Knob Push & Twist as "Same as DAW" in your Oxygen Pro Template).
• Improved: Added transport button info to hint panel see Play/Pause, Stop, Record, etc.
• Improved: Fine-tuned free version code for easier management.
• Improved: Renamed free oxygen pro midi script to '1-GRAT-OXYGENPRO-MAIN' for easy access at top of script selector + not having to keep changing version naming on updates.

FREE Version 3.0

• Improved: Implemented proper way to forward / back BAR in FL Studio & removed my extra workaround code. Free MIDI Script is now very minimal and fixes Transport LOOP button as intended.

FREE Version 2.0

• Improved: Workaround code for Forward / Back 1 Bar to prevent certain windows taking focus.

FREE Version 1.0

• Added: My first attempt at Python code to ensure M-Audio Oxygen Pro Transport Buttons gave normal operation. (Play = Play & Pause, Stop = Stop & Reset, Forward = 1 BAR Forward, Back = 1 Bar Back, Record = Toggle Record, LOOP = Switch Song / Pattern Mode)
